Chines Granule Grain Salt Sugar Nuts Snack Beef Jerky Biscuit Chips
Doypack Pouch Bag Sachet Food Packaging Machine
Fully automatic packaging machine
Automatic Rotary meat food Filling Sealing vaccum packing machine
Machine Features:
Are you looking for a small sachet packing machine which can
packing 1-100g grain product by automatic? Do you trying to find a
economical packing machine model but with high quality and assured
service?
Here Our Grain / Granule / Sugar / Snack / Nuts / Sachet Vertical Filling
Packing Packaging Machine can be your first choice!
1. The section where the material contact is stainless steel as the
body of machine is optional for complete or partial stainless steel
and all out equipments have passed the CE Standard.
2. Optional English or other languages screen display, easy and
simple operation.
3. High-sensitivity photoelectric color tracing and digital input
of cutting position get more accuracy.
4. Packaging speed and length of bags can be set to some extent
without further adjustment and parts changing packaging speed and
length of bags can be set to some extent without further adjustment
and parts changing.
5. Bag-making, filling, sealing, cutting, counting can be achieved
automatically and straightly.
6. Bag-making equipment can be changed according to specific
requirement of customers and products.
| Sachet type | 3/4 sides seal,back seal,linked bag |
| Sachet size range | Max.Size | 150mm(W)×200mm(L) |
| Min.Size | 30mm(W)×40mm(L) |
| Filling weight range | ≤100g ( suggested) |
| Packing speed | 10-50 bags/min |
| Electricity Power | 2.2KW |
| Power Electricity | 220V single phase, 50 / 60Hz |
| Film Roll Diameter | ≤Φ300mm |
| Max Film Width | 320mm |
| Machine Dimension(L×W×H) | 760mm x 1000mm x 1800mm |
| Machine Weight | 300KG |
Machine was using volumetric cup feeding system, which is easy to
taking out for cleaning and install back. Suitable products like:
sugar, salt, beans, sojas, peanuts, candy, rice, seasame etc. The
Packing weight tolerance only ± 1%.(depending on the material size).
If working with other filling system like: Auger filler, liquid
pump, chain buckets, line weigher etc can be using to pack powder,
liquid, solid products.
Client just need install packing film with achine, then it will
automatic to achieved: bag forming, weight metering, product
filling, bag sealing, counting, cutting and batch number printing.

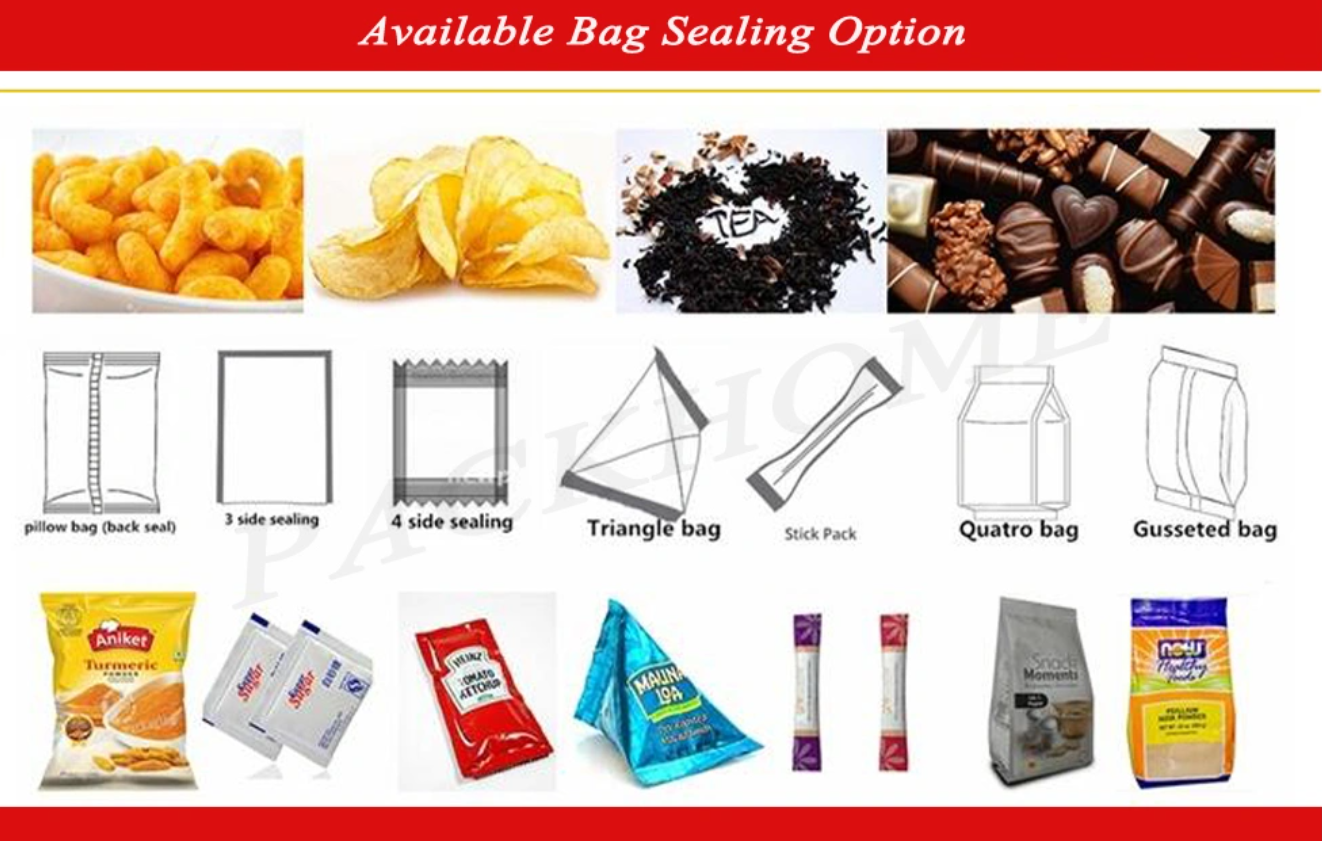

Bag type like: pillow bag, 3/4 sides seal bag, linked bag was all
available!
Cooperative partners
FAQ
One-year warranty period for whole machine except of tubes and
human factors etc, and 12-month of after-sale service from the
date when you receive machine or 12 months when installation
finished; Consultant services for whole machine life, and 24 hours
technical support by email; UPS, English software, user manual and
the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and
each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than
ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance
service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and
videos, or you can come to us to have the quality checking by
yourself,
or by the third party inspection organization contacted by your
side.
5. We are afraid you won't deliver us the machine after we pay you
the money.
Please note our above business license and certificates. And if you
don't trust us, you can use Alibaba's trade assurance service or
by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing
machines professionally over 10 years, and we can provide better
after-sales service.
