Chinese 1000kw 500kw 200kw 150kw 120kw 100kw Generador Electrico
Diesel Generator Brushless Diesel Generator
FUDE Power System is committed to the R&D and manufacturing of
Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting
Tower, Welding Generator and related control system and
accessories. As a high-tech enterprise, we obtained National
Industrial Production Permit in fabricating compressors.
Meanwhile, we are a comprehensive solution provider for our
customers in different fields, both power solution and air
compressed solution. Combining our worldwide after-sales service,
our product is widely used in different industries to cater to
different customer demand.
Diesel Generator Set Configuration:

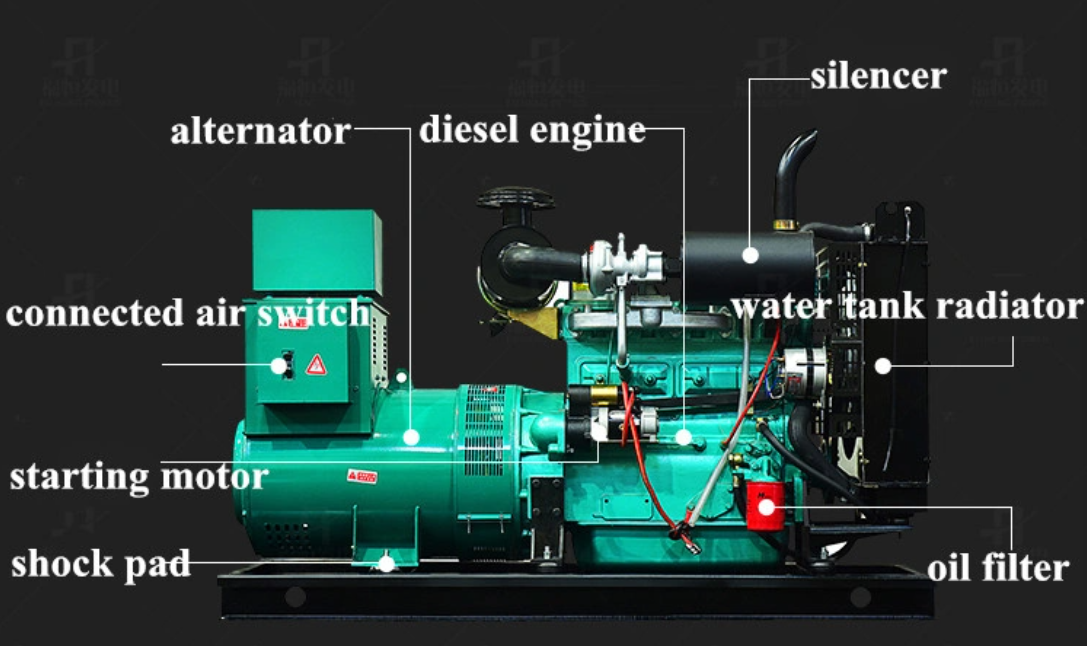

Diesel Generator Set Photos Details:
| MODEL | CD-C200KW/250KVA |
| Powered by Cummins Engine |
| Prime Power (50HZ) | 200KW/250KVA |
| Standby Power (50HZ) | 220kw/275KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | DCEC Cummins 6LTAA8.9-G2 4 Cycle |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 114X 135 |
| Compression Ratio | 16.0:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 42.4 |
| Engine Displacement (L) | 4 |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 14.3 |
| Coolant Volume (L) | 25 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Newage Stamford UCI274K or Leadtech LTG274L |
| Alternator Power | 200KW/250KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 2350 |
| Dimensions (L x W x H) mm | 3200*1500*2010 |
| 40FT Container | 4 units |
| Controller | Smartgen 6110 or Deepsea 6020 |
| Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS |
| Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
Our customers include Africa, Southeast Asia, West Asia, South
America and other emerging developing countries. We are committed
to providing our customers with better quality, better price and
good products, and creating more value for our customers
1.We develops independently with 4100 series, British ricardo R4105
and R6105 series, the 6113 series and steel 6126 series diesel
engines.
2.Combined the advantages of domestic and foreign advanced diesel
engines , improved the fuel injection system, intake and exhaust
system, the cooling system to suit the seeds of various generating
sets.
3.High power, low fuel consumption, easy to start, equipped with
air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without
brush as optional parts.
5.The generator can be equipped in factory, school, hospital,
farm,etc.
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes
first(Excep the damageable spare parts of genset caused by
incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global
warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent
demand, the delivery will be shorter depending on the requirements.
If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
