Low Price with Ricardo Engine Brushless Alternator 50kw 60kw 80kw
Diesel Power Generator
Product Description
1. Our cooperate with famous diesel engine -powered by Yuchai,
Fawde, Yangdong, Deutz, Lovol,UK brand, USA brand, Weichai ,Volvo
etc..
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation,
fireproofing
5. New design of turn-back type for air inflow & air outlet which
can reduce the noise and advance engine efficiency.
6. Generator set use High-quality steel are thickness canopy -- 2MM
to 6MM
7. Generator equipped with 12V/ 24V DC battery with charger,
battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel
indicator, long time for working.
9. Beautiful & practicably design, Bottom hole for forklift, Water
outlet & oil outlet for easy maintenance

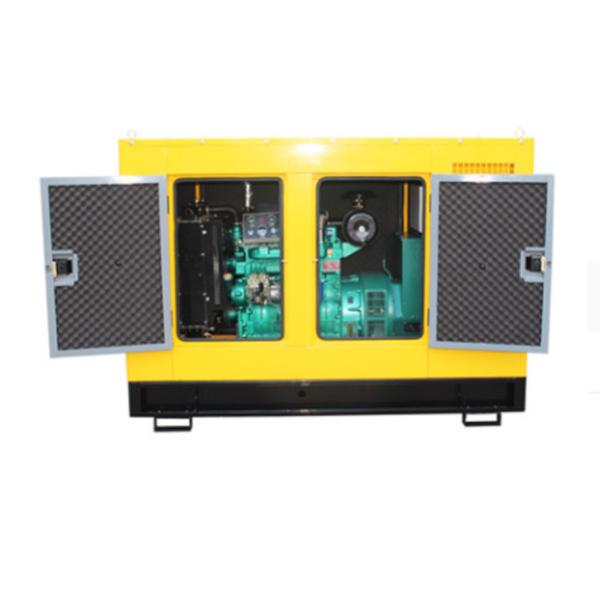

10. Double open door on both sides of the Gensets. Spacious doors
can check for every part of the engine and alternator.
11. All new design for diesel generator set of Silent, Supper
silent, Soundproof, Trailer type, Container type.
Product Parameters
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H
insulation class,with AVR. |

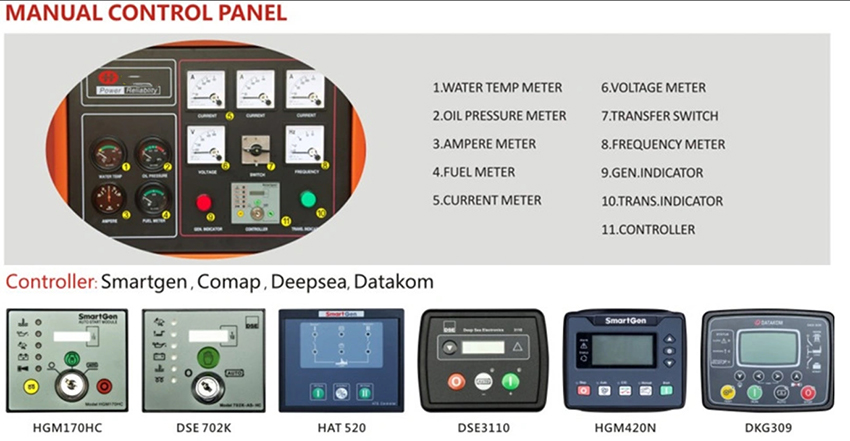

| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery
charge of main supply. |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck
cooling,with fan guard and front guard. |
| 7) Anti-vibration pads fixed between engine/alternator and base
frame to ensure the compete genset running stable. |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF
panel,Trailer,Parallel system. |
| |
| 25Kva Yangdong diesel generator | |
| Genset Specification | |
| Genset Model | BSC62.5 |
| Prime Power(Kw/Kva) | 5062.5 |
| Frequency | 50Hz |
| Structure type | Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | SC4H95D2 |
| Alternator Model | ZL224E |
| Open type DimensionL*W*H(mm) | 2390x980x1370 |
| Weight(Kg) | 1405 |
| Silent type DimensionL*W*H(mm) | 2390x980x1370 |
| Weight(Kg) | 1405 |
| |
| Engine Detail | |
| Manufacturer | Shangchai engine Co.,Ltd |
| Model | SC4H95D2 |
| Engine speed | 1500rpm |
| Engine power | |
| ......Prime power | 50KW(50Hz) |
| Type | vertical,4cylinder,in-line,water-cooled,four-stroke |
| Aspiration | Naturally aspirated |
| Governor | electrical |
| Bore*Stroke | 85*90mm |
| Displacement | 1.532L |
| |
| Alternator Detail | |
| Model | ZL224E |
| Output power(Kw/Kva) | 5062.5 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Our advantages
1.Generator diesel High-quality steel are thickness canopy -- 2MM
to 6MM
2.Generator diesel high density sound-absorbing material -- sound
insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery
connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long
time for working.
5. Genset High protect class control box and power output box.
IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which
can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for
forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can
check for every part of the engine and alternator.
Our customers include Africa, Southeast Asia, West Asia, South
America and other emerging developing countries. We are committed
to providing our customers with better quality, better price and
good products, and creating more value for our customers
1.We develops independently with 4100 series, British ricardo R4105
and R6105 series, the 6113 series and steel 6126 series diesel
engines.
2.Combined the advantages of domestic and foreign advanced diesel
engines , improved the fuel injection system, intake and exhaust
system, the cooling system to suit the seeds of various generating
sets.
3.High power, low fuel consumption, easy to start, equipped with
air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without
brush as optional parts.
5.The generator can be equipped in factory, school, hospital,
farm,etc.
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes
first(Excep the damageable spare parts of genset caused by
incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global
warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent
demand, the delivery will be shorter depending on the requirements.
If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
