Excellent Power Genset 500kw Silent Electric Diesel Generator
Diesel Generator with Big
Power 500kw
Shanghai Diesel Engine Co., Ltd. (SDEC), with SAIC Motor
Corporation Limited as its main shareholder, is a large state-owned
high-tech enterprise engaged in research and development and
manufacture of engines, engine parts and generator sets, possessing
a state-level technical center, a postdoctoral working station,
world-level automatic production lines and a quality assurance
system that meets passage cars standards. Its former was Shanghai
Diesel Engine Factory that was established in 1947 and was
restructured into a stock-shared company in 1993 with shares of A
and B.
In its nearly 70 years' development, SDEC saw its products all over
the world. SDEC now has seven series of high-quality diesel and
natural gas engines, i.e. R, H, D, C, E, G and W series. These
series engines with power outputs of 50 to 1,600 kW are mainly
applied to trucks, buses, construction machinery, generator sets,
marine application and agricultural equipment.

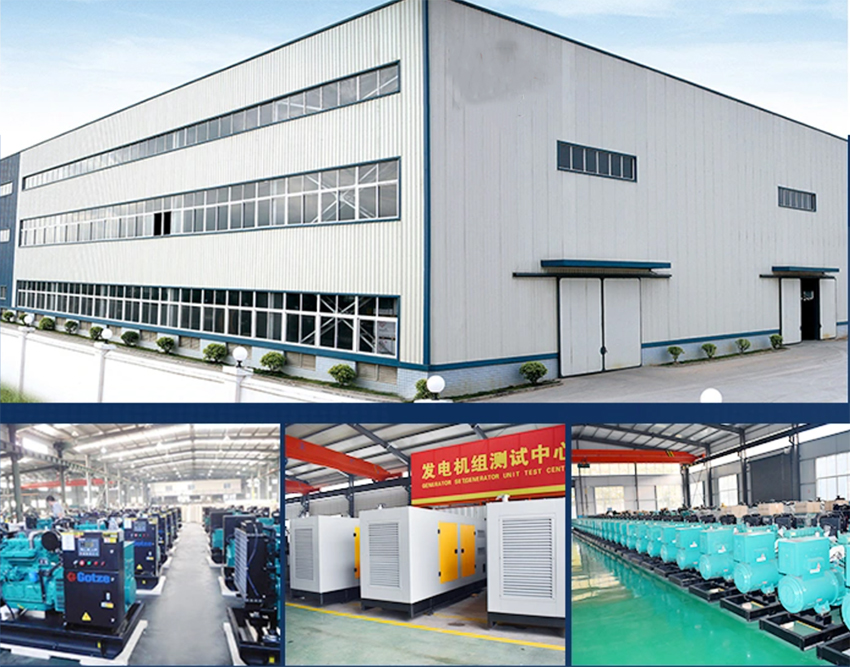

FUDE Power System is committed to the R&D and manufacturing of
Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting
Tower, Welding Generator and related control system and
accessories. As a high-tech enterprise, we obtained National
Industrial Production Permit in fabricating compressors.
Meanwhile, we are a comprehensive solution provider for our
customers in different fields, both power solution and air
compressed solution. Combining our worldwide after-sales service,
our product is widely used in different industries to cater to
different customer demand.
Genset
Model | Rated output | Engine brand | Engine output | Cylinder Number | Bore * Stroke
(mm) | Fuel Consumption (g/kw.h) | Overall Size
(L*W*H)(mm) | Weight (kg) |
| KW | Shangchai | KW |
| HF50S | 50 | 4135D-1 | 64 | 4.L | 135/140 | ≤210 | 2200*900*1400 | 1587 |
| HF64S | 64 | 4135AD | 80 | 4.L | 135/140 | ≤210 | 2200*900*1400 | 1600 |
| HF75S | 75 | 6135D-3 | 97 | 6.L | 135/150 | ≤210 | 2850*1000*1700 | 2250 |
| HF100S | 100 | 6135AD-3 | 121 | 6.L | 135/150 | ≤210 | 2850*1000*1700 | 2400 |
| HF120S | 120 | 6135AZD-1 | 170.5 | 6.L | 135/150 | ≤210 | 3300*1250*1900 | 2650 |
| HF150S | 150 | 6135AZD-1 | 170.5 | 6.L | 135/150 | ≤210 | 3300*1450*1900 | 2700 |
| HF180S | 180 | G128ZLD | 206 | 6.L | 135/150 | ≤207 | 3300*1450*1900 | 2740 |
| HF200S | 200 | G128ZLD2 | 227 | 6.L | 135/150 | ≤210 | 3300*1450*1900 | 3000 |
| HF250S | 250 | G128ZLD1 | 260 | 6.L | 135/150 | ≤210 | 3300*1450*1900 | 3100 |
| HF300S | 300 | 12V135AZD | 330 | 12.Vee | 135/150 | ≤210 | 3600*1550*1900 | 4200 |
| HF350S | 350 | 12V135AZLD | 372 | 12.Vee | 135/150 | ≤210 | 3900*1550*1900 | 4600 |
| HF400S | 400 | 12V135BZLD | 445 | 12.Vee | 135/155 | ≤210 | 3900*1550*1900 | 4600 |
| HF450S | 450 | 12V135BZLD-2 | 505 | 12.Vee | 135/155 | ≤210 | 3900*1550*1900 | 4600 |
| HF500S | 500 | 12V135BZLD-1 | 555 | 12.Vee | 135/155 | ≤210 | 3900*1550*1900 | 4650 |
1. Advantage
Strong power performance
Good economy
High Reliability
Good environmental pertection
High safety
Powerful adaptability
2.Main Parameter
| Item | Data |
| Cylinder diameter | 190mm |
| Piston stroke | 210mm |
| Piston displacement | 71.4L |
| Compression ratio | 14:1 |
| Fuel oil consumption(full load) | ≤ 209.4g/kw.h |
| Lubricant oil consumption | ≤ 1.6 g/kw.h |
| Operate mode | Long--distance electronic control
Manual control |
| Starting mode | Pneumatic motor, electric motor |
| Aspiration mode | Direct injection, turbo charging |
| Lubricant mode | Pressure and splash |
| Exhaust temperature(before turbo) | ≤600ºC |
| Outlet water temperature | ≤85ºC |
| Lubricant oil temperature(in oil pan) | ≤90ºC |
| Pressure of engine oil in main oil pass | 392-784 |
| Crank shaft rotation direction (face output terminal) | Anticlockwise (face to output terminal) |
3. Specification
| Engine Type | Rated Power | Rated Speed | Fuel Oil
Consumption | Oil Consumption | Overall Dimensions | Net Weight |
| Z12V190BC-1 | 800kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190BC-2 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190BC-8 | 1000kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190BC-9 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190BC-10 | 900kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190BC-11 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190ZLC1 | 1000kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
| Z12V190ZLC2 | 1000kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Our customers include Africa, Southeast Asia, West Asia, South
America and other emerging developing countries. We are committed
to providing our customers with better quality, better price and
good products, and creating more value for our customers
1.We develops independently with 4100 series, British ricardo R4105
and R6105 series, the 6113 series and steel 6126 series diesel
engines.
2.Combined the advantages of domestic and foreign advanced diesel
engines , improved the fuel injection system, intake and exhaust
system, the cooling system to suit the seeds of various generating
sets.
3.High power, low fuel consumption, easy to start, equipped with
air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without
brush as optional parts.
5.The generator can be equipped in factory, school, hospital,
farm,etc.
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes
first(Excep the damageable spare parts of genset caused by
incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global
warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent
demand, the delivery will be shorter depending on the requirements.
If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
