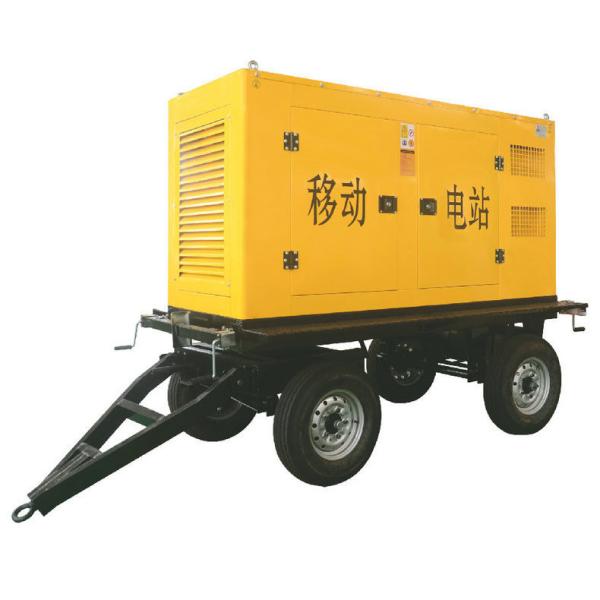

China hot sale 20kva yellow small silent diesel generator price,small generator
Standard Configuration
FUDE Power System is committed to the R&D and manufacturing of Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting Tower, Welding Generator and related control system and accessories. As a high-tech enterprise, we obtained National Industrial Production Permit in fabricating compressors.
Meanwhile, we are a comprehensive solution provider for our customers in different fields, both power solution and air compressed solution. Combining our worldwide after-sales service, our product is widely used in different industries to cater to different customer demand.
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 | Set Model | FD-FW28 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 20KW 25KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 22KW 28KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1450*650*1050,
Silent: 2000*940*1200 |
| 1.7 | Weight | Open: 480kg, Silent:800kg |
| 1.8 | Fuel consumption 100% prime load | 5.5l/h |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DW92-35D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 12V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 90×100 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 2.54 |
| 2.13 | Engine Prime Power at 1500rpm | 26KWm |
| 2.14 | Engine Standby Power at 1500rpm | 29KWm |
| 2.15 | Lubrication oil capacity | 8L |
| 2.16 | Oil consumption | 0.04 |
| 2.17 | Dry weight of base | 240Kg |
| 2.18 | Dry weight of Gen Pac | 260Kg |
| 2.19 | Overall dimension(G.P) | 1120×810×760(mm) |
| 2.2 | Overall dimension(base) | 750×600×735(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.1 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR |
| 3.1 | Alternator Model | Stamford/PI 144E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 39.7A |
| 3.12 | Efficiency | 0.858 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 150kg |
| Please Click Here to Contact Us for More Info. |
| Rated power | Engine | Alternator | Control panel |
| 20kw~1300kw | Cummins | Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators | Deepsea
ComAp
Harsen
Smartgen |
| 8kw~1600kw | Perkins |
| 68kw~504kw | Volvo |
| 20kw~500kw | Deutz |
| 220kw-2400kw | MTU |
| 280kw-800kw | MAN |
| 600kw-1800kw | Mitsubishi |
| 60kva-660kva | Doosan |
| 2kw~2500kw | Chinese engine |
Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers
1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.
5.The generator can be equipped in factory, school, hospital, farm,etc.
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
