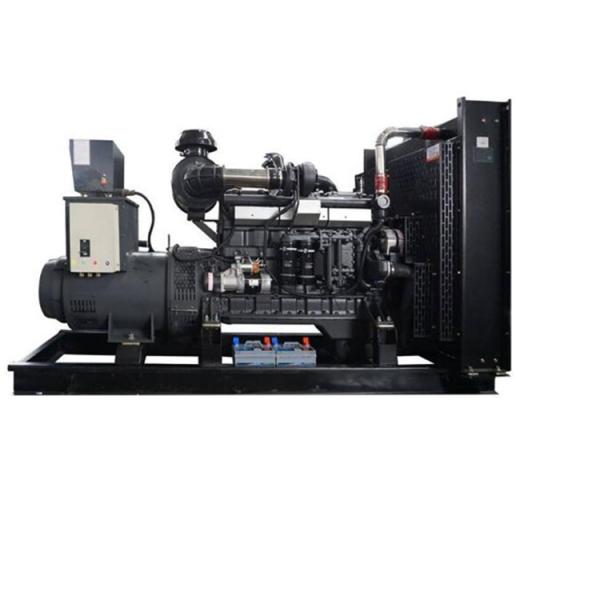

CDC500KVA Diesel Generator with USA engine KTA19-G4 Diesel
Generator 500KVA for sale Shandong
Standard Configuration
FUDE Power System is committed to the R&D and manufacturing of
Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting
Tower, Welding Generator and related control system and
accessories. As a high-tech enterprise, we obtained National
Industrial Production Permit in fabricating compressors.
Meanwhile, we are a comprehensive solution provider for our
customers in different fields, both power solution and air
compressed solution. Combining our worldwide after-sales service,
our product is widely used in different industries to cater to
different customer demand.
| Engine Model | 4BTA3.9-G2 |
| Engine manufacturer | CUMMINS |
| Number of Cylinders | 4 cylinders |
| Cylinders arrangement | Vertical in line |
| Cycle | 4 stroke |
| Aspiration | Naturally |
| Bore×Stroke | 102mm x120mm |
| Displacement | 3.9L |
| Compression ratio | 16.5:1 |
| Prime Power/Speed | 60kva/1500rpm |
| Standby Power/Speed | 55KW/1500rpm |
| Speed Governor | electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 11L |
| Fuel Consumption at 100% Load | 216 g/kw.h |
| Starter Motor | DC24V |
| Alternator | DC24V |
Denyo silent electric generator 60kva diesel generator price with
Cummins engine 4BTA3.9-G2
| Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
| Prime power | 60kva |
| Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
| Exciter type | Single bearing, Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
60kva diesel generator price (Control panel)
| Brand | Deepsea/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
FAQ
Our customers include Africa, Southeast Asia, West Asia, South
America and other emerging developing countries. We are committed
to providing our customers with better quality, better price and
good products, and creating more value for our customers
1.We develops independently with 4100 series, British ricardo R4105
and R6105 series, the 6113 series and steel 6126 series diesel
engines.
2.Combined the advantages of domestic and foreign advanced diesel
engines , improved the fuel injection system, intake and exhaust
system, the cooling system to suit the seeds of various generating
sets.
3.High power, low fuel consumption, easy to start, equipped with
air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without
brush as optional parts.
5.The generator can be equipped in factory, school, hospital,
farm,etc.
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes
first(Excep the damageable spare parts of genset caused by
incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global
warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent
demand, the delivery will be shorter depending on the requirements.
If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
