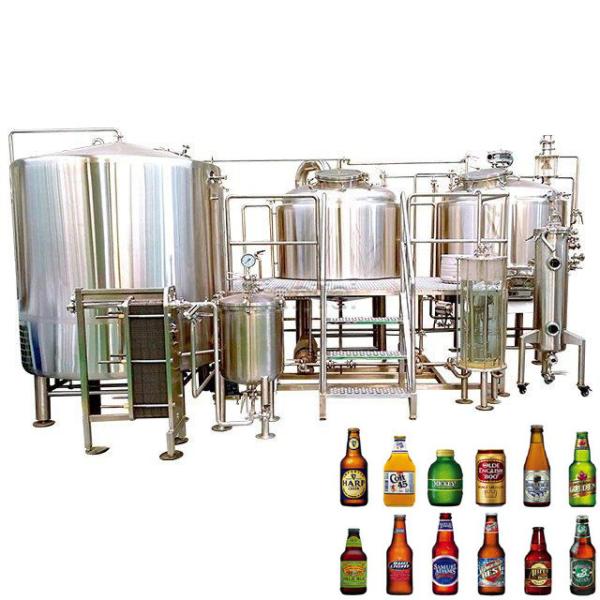

1000L Beer Brewing Stainless Steel Conical Fermenter

    Buy cheap 1000L Beer Brewing Stainless Steel Conical Fermenter from wholesalers

    Buy cheap 1000L Beer Brewing Stainless Steel Conical Fermenter from wholesalers
    • Buy cheap 1000L Beer Brewing Stainless Steel Conical Fermenter from wholesalers
    • Buy cheap 1000L Beer Brewing Stainless Steel Conical Fermenter from wholesalers

    1000L Beer Brewing Stainless Steel Conical Fermenter

    Ask Lasest Price
    Brand Name : Fude
    Model Number : FD-B-500
    Certification : CE,ISO,UL,3C
    Price : 1000-50000
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000
    Delivery Time : 7
    • Product Details
    • Company Profile

    1000L Beer Brewing Stainless Steel Conical Fermenter

    Made in china hot sale good quality beer brewing fermenter tank conical fermenter

    2020 hot sale high quality 1000L conical fermenter 1000L mash tun beer brewing for sale


    Application

    The whole set equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Widly used in brewery,bar, hotel,family etc.

    Brewhouse System

    mash/ lauter tank, kettle/ whirlpool tank, hot water tank; wort pump, hot water pump, heat exchanger,

    other accessories: mashing pipes, thermometer, wort oxygenate assembly, titanium stick, survey barrel, sanchorometer, rake, work platform

    More details make perfect

    1. Polishing:

    Polishing is vital for tanks. Tanks should be polished wholly inside and outside.

    Therefore it can ensure there is no place for the bacteria to hide in tanks.

    Our polishing system consists of auto and semi-auto polishing machine and manual polishing.

    Each tank is polished three times and more polish for the key place.

    1000L Stainless Steel Beer Fermentation Equipment Turnkey Project For Brewery System
    1.Malt Milling System
    Mill machine
    Stainless steel/Carbon steel
    Grist case
    Stainless steel
    Flexible conveyor
    Outer PPR or Stainless steel
    2.Brewhouse System
    Mashtun
    -Inner:3mm;outer:2mm
    -Motor agitation
    -Steam jackets/Electric elements/Fire direct heating
    Lauter tun
    -Inner:3mm;outer:2mm
    -Rack system;
    -False bottom filter
    Kettle tun
    -Inner:3mm;outer:2mm
    -Steam jackets/Electric elements/Fire direct heating
    Whirlpool tun
    -Inner:3mm;outer:2mm
    -Side tangent whirlpool inlet
    Hot water tank
    -Inner:3mm;outer:2mm
    -Steam jackets/Electric elements/Fire direct heating
    Accessories
    -Mash pump;;Heat exchange plate;Hop back system; Brewhouse Pipes;
    3.Fermentation System
    Fermentation tank
    -Pressure:3Bar;
    -Inner:3mm;outer:2mm;with insulation;
    -Cooling jackets;
    Accessories
    Yeast Saving Tank;
    4.Cooling System
    Glycol water tank
    -Inner:3mm;outer:2mm
    Accessories
    Chiller; Glycol water pump; Pipes & Valves;
    5.CIP System
    Acid tank
    Pump; Pipes & Valves
    Caustic tank
    Trolley
    Accessories of the CIP System
    6.Control System
    -Automatic/Semi-auto
    7.Filtering System
    Candle type diatomite filter/Membrane filter/Bag filter
    Bright beer tank
    Double-layer with insulation;
    8.Filling System
    Glass bottle line
    -Capacity:800-1200 BPH
    -Washing heads:8;Filling heads:8;Capping heads:3
    -Optional:
    Capacity:1500-2000 BPH
    -Washing heads:16;Filling heads:16;Capping heads:6
    Canning line
    Capacity:1000-1500 CPH
    -Filling heads:12;Capping heads:1
    Keg system
    Keg filling machine;Keg washing machine;Keg washing and filling unity machine;

    Pre-sale service

    1. Free of making offers, craft and technical guidance.

    2. We can provide company’s qualification certification and the drawings.

    3. We can also make customized products according to customer’s needs.

    After-sale service

    1. We provide long-term after-sale service.

    2. Owing to the quotation of our equipment is FOB price.Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

    3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service.
