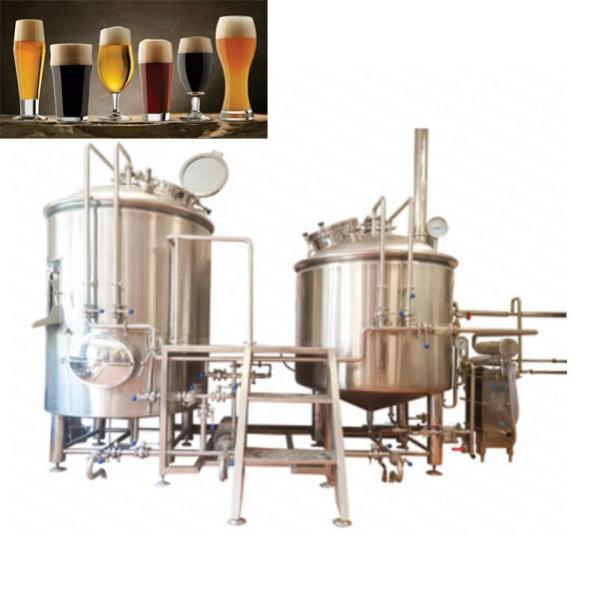

100L 500L Stainless Steel 304 Micro Brewing Equipment

Ask Lasest Price
Brand Name :	Fude
Model Number :	FD-B-500
Certification :	CE,ISO,UL,3C
Price :	1000-50000
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000
Delivery Time :	7

Add to Cart

Product Details
Company Profile

100L 500L Stainless Steel 304 Micro Brewing Equipment

China Manufacturer Micro Brewing Equipment 100L/500L Beer Machine Stainless Steel 304 Beer Brewing Equipment

MASH SYSTEM:

Mash system mainly includes mash tank and filter tank and hot water tank. We can support you all kinds of beer equipment with range from 100L to 3000L, we can also design it according to your request.
The main parts of the equipment in this system are made of stainless steel reaching international standard level. With German method, the outside of hotel beer brewery equipment can choose red copper material with better practicability and decoration. The equipment adopts the advanced technology of numerical control plasma, laser cutting line and pure argon gas welding,it can achieve to aseptic. And it can transit heat and save the energy maximally according to steam following principle with the applying of dirnple plate jacket technology. It keeps the suifficance of equipment as the same to the temperature in the house for applying of the imported polyurethane. The whole equipment and the layout of pipelines looks very beautiful without the dead corner. It can be operated easily and has stable function . Besides there is a special cap on the boiling tank for safety improving the safety and the level of automation. The levelness of the major parts can be adjusted without dropping, leakage,bubbling and steam leaking.

BREWHOUSE SYSTEM:

mash/ lauter tank, kettle/ whirlpool tank, hot water tank; wort pump, hot water pump, heat exchanger,
other accessories: mashing pipes, thermometer, wort oxygenate
assembly, titanium stick, survey barrel, sanchorometer, rake, work
platform

Feature of Tonsen beer brewing equipment:
1)Desiging tanks and heating system according to craft, mash tank
warming≥10ºC/min
2)Energy saving stir structure : large cross-section impeller,
15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and
milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow
plow knife
5)Wort boiling heat way includes steam jacket, interior heating and
exterior heating.
6)Material includes stainless steel 304, 316 and red copper.
Detailed Information
Beer EquipmentSUS304 / SUS316 / red copper
InteriorStainless steelThickness 3.0mm
ExteriorStainless steelThickness 2.0mm
Bottom Cone60° for fermentor160° for brewhouse
Heating/Colling MethodSteam/Electrical heatingDimple jacket
Glycol cooling
Temperature ControlPT100
Presure DisplayStainless steelPressure Guage
Pressure RelieStainless steelPressure Relief Valve
Cleaning SystemSUS304CIP arm with 360 spary cleaning ball
Insulation LayerRock Wool / Polyurethane70~80mm
ManwaySUS 304Clamp or Flange Manway
Sampling ValveSUS 304Aseptic Type, no Dead Coner
Dry Hops Adding PortSUS 304Optional, clamp Type
Carbonation DeviceSUS 304Optional
Yeast Adding TankSUS 3045L
Bright Beer TankSUS 304Single or Double-deck available
Filling SystemSUS 304Optional

DETAILS:

Rake system
1.Raker is able to lift and decline spent grain out automaticly.
2.For mashing tank, the rotation sped is 0-43 rpm (adjustable).
3.For lauter tun, the rotation sped is 0-29 rpm (adjustable).
Welding
1.All the welding lines are TIG welded, which uses argon gas to
protect the joint.
2.Welders are skilled with full experience of TIG welding method.

EXHIBITION AND PACKING:


OUR SERVICES:

Pre-sales service:
1)Help the clients to comfirm the configuration list.
2)Supplying different beer craft specification.
3)Desing the drawing according to the client's floor plan and your
requirement.
4)Showing the detailed diagram of the tanks.

After sales service:
1)We provide turnkey system,onsite installation service for brewery
projects.
2)It's avaliable for us to send engineers to guide install.
3)Online technology consult.
