Commercial Brewing Brewery Fermenter 1000 Lts Beer Fermentation
Vessel
Made in China 500l brew system brewery equipment beer fermenting
turnkey plant for bar
Advantages Fude Brewing Equipment
1. Easy to operate: include all the kits to start to brew, offer instruction manual.
2. Competitive price:super quality with competitive price, all perfect SUS304 and
thickness.
3.Beer:Can brew all kinds of beer, such as barley beer, wheat beer, bight
beer, black beer, ect.
4. Technology: Perfect workmanship, all use 10years experiences management and
workers in the industry.
5.Installation: Provide engineer to install, piping mark numbers, and complete
installing instruction manuals/diagrams.
6.Warranty:Main machine 3 years' warranty, auxiliary equipment one year's
warranty, all life service. Fude global service network will
provide maintenance.

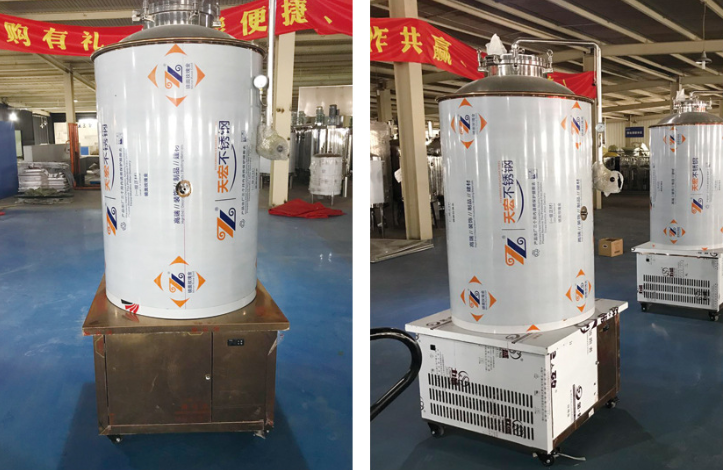

Features of beer fermenter
| 1. materials | sanitary stainless steel 304 or 316L. |
| 2. volume | range from 50L to 10,000L and even larger. |
| 3. jackets | cooling jacket and insulation layer filled with PU which is
inported from Japan |
| 4. structure | dish top, conical bottom, breeding yeast, cylinder body. |
| 5. polishment | 3A mirror polish for interior layer and dish top, 2B satin polish
for exterior layer and conical bottom. |
| 6. transition of interior | adopt arc to make sure that there is no dead corner of sanitation. |
| 7. clamp | all clamp valve and fitting except for cold water inlet and outlet
are Tri-clamp |
| 8. accessories | relief valve, lifting ears, CIP spraying ball with pipe, spare
hole, temperature gauge or thermometer probe,pressure gauge, etc. |
We can also manufacture the fermenters according to your special
specification!
| Model & Specification | 100L | 200L | 500L | 1000L | 2000L | 5000L | 10000L | 20000L | 50000L |
| Diameter(mm) | 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 | 3100 |
| Height(mm) | 2000 | 2300 | 2650 | 2900 | 3800 | 4480 | 5250 | 6550 | 8550 |
| Pressure inside tank (Mpa) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Pressure inside jacket (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | pipe0.3 | pipe0.3 | pipe0.3 |
| Impeller number | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 | 4 |
| Mixing speed (r/min) | 400 | 360 | 265 | 220 | 180 | 160 | 145 | 125 | 110 |
| Rotor power (r/min) | 0.55 | 0.75 | 1.5 | 2.2 | 4 | 7.5 | 17 | 30 | 55 |
| Cooling type | jacket | tube |
Construction of beer fermenter
1.The tank body has interlayer and heat-insulating layer (for
heating, cooling or heat insulating)
The tank body, upper and lower closure heads(or taper) all adopt
spinning R-angle processing.
The internal wall of the tank has got mirror polishing with finish
Ra≤0.4μm.
2.It has no sanitary dead corner and its wholly-enclosed design
ensures that materials are always mixed and ferment at
non-pollution state.
Pre-sale service
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the
drawings.
3. We can also make customized products according to customer’s
needs.
After-sale service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price.Thus, if
necessary, we can appoint our technician to debug the machine with
air ticket, visa, accommodation and labor cost provided by your
party. Or you can send your technician to our company to learn
techniques.
3. Meanwhile, you can call or e-mail to consult any relevant
questions since we have a special line of after-sale service.
