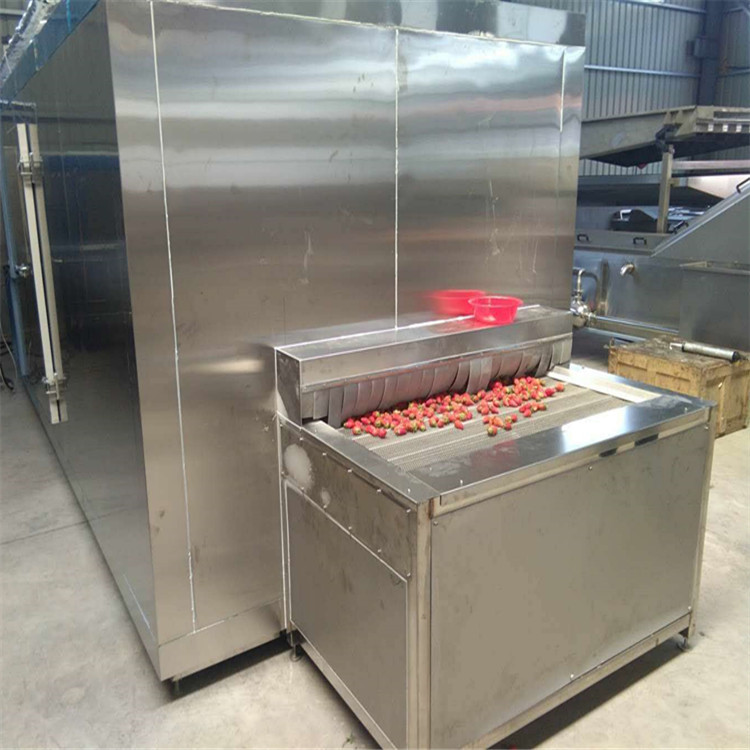

Tunnel Blast Freezer/ iqf tunnel instant freezer /industrial Freezer Price

Scheme Design:

Form of placing: after placing on the net belt
Internal operating temperature of the equipment: 0℃~-70℃
Feed temperature of frozen products: ≤20℃ (central temperature)
Discharging temperature of frozen products: -18℃ (central temperature)
Freeze time: adjustable for 6-60 minutes
Heat transfer form: side blow heat exchange
Energy saving measures: the inlet and outlet of the material is equipped with air guide plate to avoid

the cold air blowing
directly out of the insulation layer, which can effectively reduce the cold loss. In addition, separate buffer

room can be set.

Features and Performance:

1. Mesh belt drive: the speed of mesh belt is adjusted stepless by imported inverter, and the freezing

time is adjustable from 6-60 minutes, which can adapt to the processing of various frozen products.
2. Ice scraping device for feeding belt to reduce damage to steel belt caused by ice and foreign matter.
3. Compressor refrigeration, no freon, green protection, odor, antibacterial, energy saving, low operating costs.
4. Unique Tong efficiency ventilation device, the reasonable air distribution, uniform air distribution, make

the material fully exposed to the strong cold wind, high freezing efficiency.
5. Food transport network, transport speed can be flexible according to different products, suitable for a variety

of frozen food processing.
6. According to the production requirements can choose single, double net belt combination.
7. The e belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.
8. The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer

cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and

meets the requirements of HACCP for food hygiene.
9. The control system has two automatic and manual cooling modes, which can be selected according to different

production needs.
10. With continuous production line, safe and durable, easy to operate, long service life.
11. Adopt water to flush frost way, safeguard clean sanitation.
12. The equipment can be customized according to the needs of users.

The IQF tunnel quick freezer specification

No.	Model	Capacity	Power	/
1	FD-100	100kg/h	18kw	/
2	FD-200	200kg/h	20kw	/
3	FD-300	300kg/h	25kw	/
4	FD-500	500kg/h	30kw	/
5	FD-1000	1000kg/h	32kw	/
6	FD-1500	1500kg/h	35kw	/
7	FD-2000	2000kg/h	38kw	/
8	FD-2500	2500kg/h	40kw	/
9	FD-3000	3000kg/h	40kw	/
10	FD-4000	4000kg/h	40kw	/
11	FD-5000	5000kg/h	40kw

Packaging & Shipping

Our packaging and shipping
1.Pacaking:
All machines which need pacaged will be covered by film then put into the export standard

wooden case, use the cystosepiment to prent breaking on ship.
The wooden case will be fixed inside the container tightly by the rope.
Export standard wooden case will be palleted for easy unloading for customers.
2.Shippping
We select the direct ship for sending the machines to customers within shortest time as we can.

And all main BL for ensuring the safety of the machines.
We update the shipping information to customer in time.
